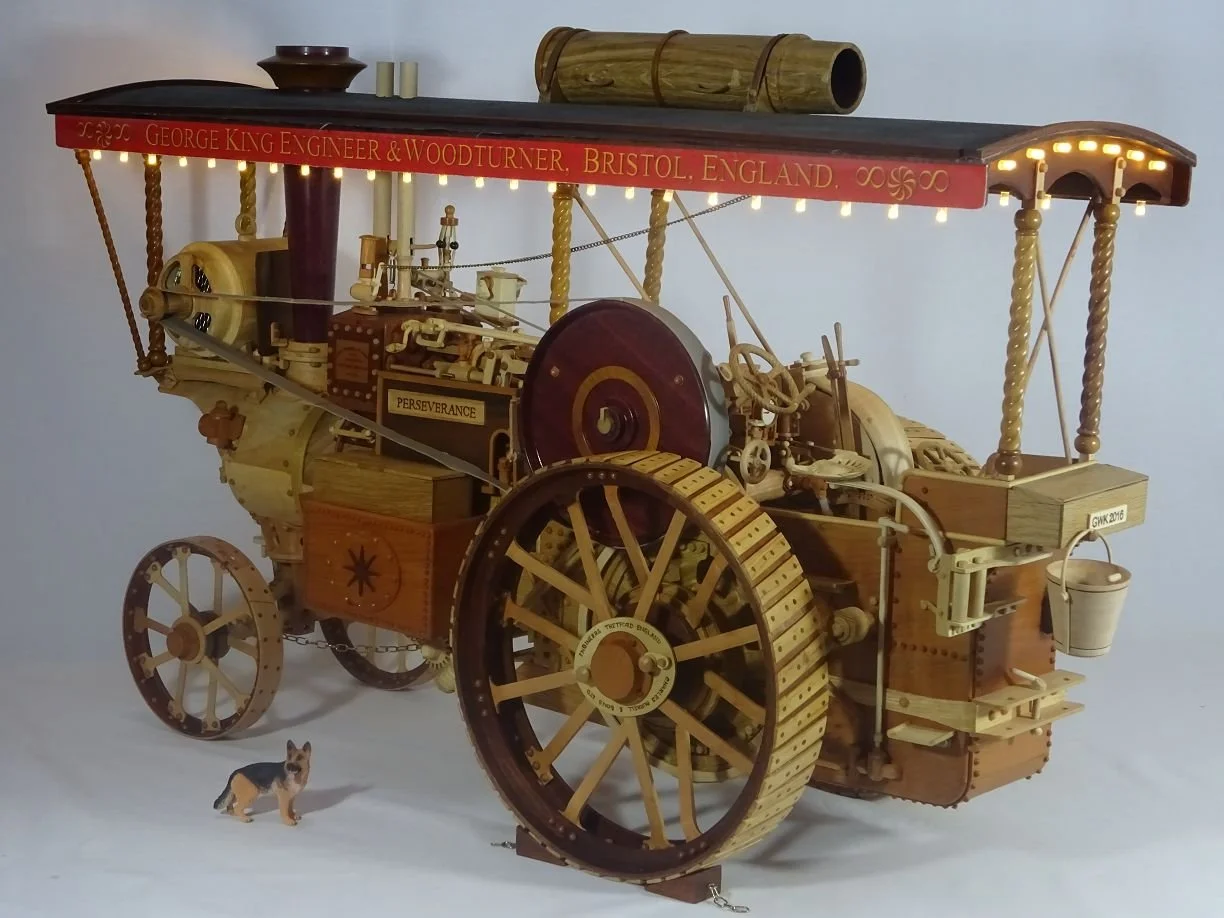

Burrell 5 ton Compound Showmans Tractor

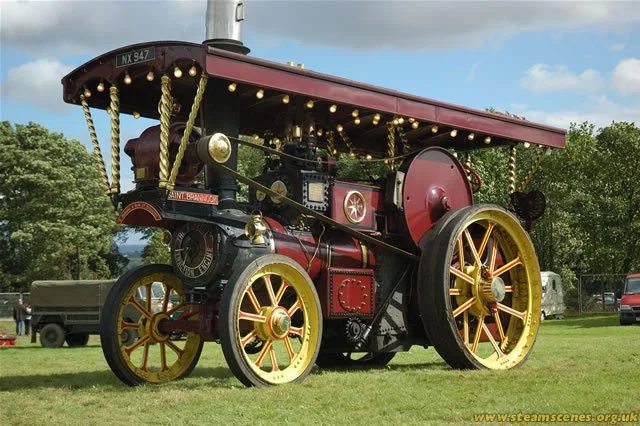

Burrell Showman Photograph

3D CAD Line Drawing in 2in scale
Drawing Started: 01-Sep-15

Construction Started: 01-Jan-16 Finished: 08-Jan-17 Length - 789mm; Width - 287mm; Height - 501mm

Exhibited (finished) at:

Gloucestershire Vintage & Country Extravaganza - Aug'17 to Aug'19 & Jul/Aug’25
Welland Steam Rally - Jul’25
Chickerell Steam & Vintage Show - Jul’24 & Jul’25
Castle Combe Steam & Vintage Rally - May'18 & May’25
Somerset Festival of Transport – Sep’23
Great Dorset Steam Fair - Aug'17, Aug'19, Aug’22
Wilton Model Show - Mar'19
Bristol Model Engineering Exhibition - Aug'17 & Aug'18
Midlands Model Engineering Exhibition - Oct'17

Exhibited (incomplete) at:

Gloucestershire Vintage & Country Extravaganza - Aug'16

STAGE 1

STAGE 1

STAGE 2

STAGE 2

STAGE 3

STAGE 3

STAGE 4

STAGE 4

STAGE 5

STAGE 5

STAGE 6

STAGE 6

STAGE 7

STAGE 7

STAGE 8

STAGE 8

STAGE 9

STAGE 9

STAGE 10

STAGE 10

STAGE 11

STAGE 11

STAGE 12

STAGE 12

STAGE 13

STAGE 13

STAGE 14

STAGE 14

STAGE 15

STAGE 15

STAGE 16

STAGE 16

STAGE 17

STAGE 17

STAGE 18

STAGE 18

STAGE 19

STAGE 19

STAGE 1 - 249 pieces

Part: FRONT WHEELS & PERCH
Started: 01-Jan-16
Finished: 15-Jan-16
Wood: Hawthorn, Mahogany, Ash, Laburnum, Yew
No of Pieces: 62 parts, 118 rivets, 13 bolts (using 249 pieces of wood)

Front Wheels

Perch

STAGE 2 - 1226 pieces

Part: REAR AXLE SPRINGS & BACK WHEELS
Started: 13-Jan-16
Finished: 02-Feb-16
Wood: Hawthorn, Mahogany, Oak, Laburnum, Yew
No of Pieces: 245 parts, 580 rivets, 8 bolts (using 977 pieces of wood)

Rear Axle Springs

Rear Wheels With Springs

STAGE 3 - 1295 pieces

Part: SMOKE BOX & CHIMNEY
Started: 03-Feb-16
Finished: 15-Feb-16
Wood: Ash, Purpleheart, Mulberry, Hawthorn, Yew
No of Pieces: 19 parts, 36 rivets, 8 bolts (using 69 pieces of wood)

Smoke Box

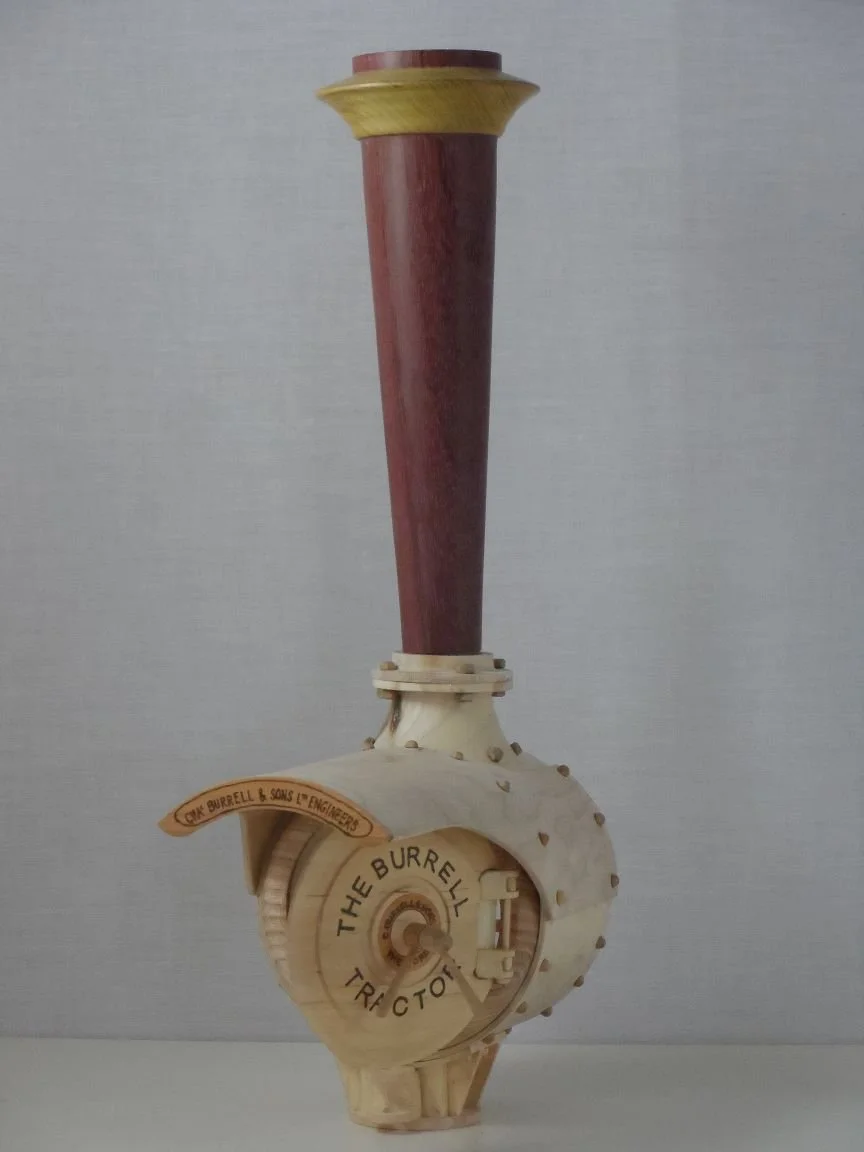

Chimney & Smoke Box

STAGE 4 - 1443 pieces

Part: BOILER, FIREBOX & FIREDOOR
Started: 15-Feb-16
Finished: 23-Feb-16
Wood: Ash, Hawthorn
No of Pieces: 44 parts, 79 rivets, 10 bolts (using 148 pieces of wood)

Smoke Box End

Firebox End

Fire Door Open & Closed

STAGE 5 - 1697 pieces

Part: HORN PLATES & HEADLAMPS
Started: 24-Feb-16
Finished: 12-Mar-16
Wood: Oak, Hawthorn, Yew, Ash
No of Pieces: 13 parts, 168 rivets, 31 bolts (using 254 pieces of wood)

Horn Plates

Headlamps include LEDs,
installed ready for connection

STAGE 6 - 1970 pieces

Part: BELLY TANK & FITTINGS
Started: 12-Mar-16
Finished: 25-Mar-16
Wood: Yew, Oak, Hawthorn, Purpleheart
No of Pieces: 27 parts, 152 rivets, 48 bolts (using 273 pieces of wood)
Comments: Lighting switches installed in nearside Tool Box, batteries for lights within Belly Tank

Water Pocket & Tool Box

Water Lifter & Tool Box

Front View

STAGE 7 - 2249 pieces

Part: TENDER
Started: 25-Mar-16
Finished: 02-Apr-16
Wood: Yew, Hawthorn, Oak
No of Pieces: 39 parts, 162 rivets, 41 bolts (using 279 pieces of wood)

STAGE 8 - 2334 pieces

Part: CRANKSHAFT WITH BEARINGS, FLYWHEEL & DYNAMO
Started: 02-Apr-16
Finished: 14-Apr-16
Material: Purpleheart, Ash, Oak, Yew, Hawthorn, English Walnut, Corian®, Stainless Steel
No of Pieces: 26 parts, 24 bolts (using 85 pieces)

Crankshaft
Reverse Angle Behind Flywheel

Dynamo
With Temporary Drive Belt

STAGE 9 - 2426 pieces

Part: CANOPY
Started: 14-Apr-16
Finished: 25-Apr-16
Material: Mahogany, Mulberry, Hawthorn, LED Lights
No of Pieces: 105 parts, 26 bolts (using 92 pieces)

Front Angle

Rear Angle

Olivers made from Mulberry support the Canopy

Progress delayed due to swallows nesting in workshop above lathe - 03-May-16

swallows 2016

STAGE 10 - 2472 pieces

Part: ASH PAN & GRATE
Started: 10-May-16
Finished: 17-May-16
Wood: Oak, Hawthorn
No of Pieces: 6 parts, 2 rivets, 6 bolts (using 46 pieces of wood)

Ash Pan

Ash Pan & Grate

STAGE 11 - 2540 pieces

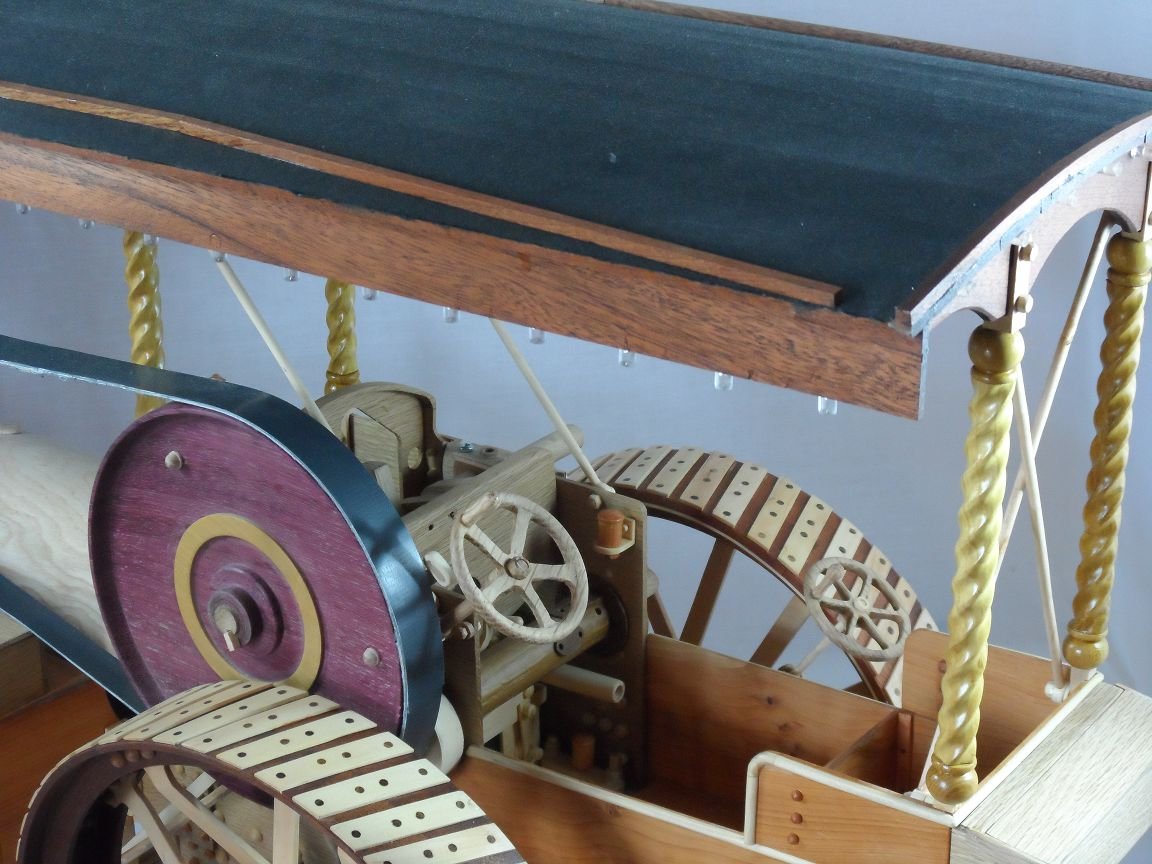

Part: CANOPY COVER, STEERING WHEEL & WHEEL BRAKE
Started: 28-May-16
Finished: 10-Jun-16
Material: Canvas, Mahogany, Oak, Hawthorn & Yew
No of Pieces: 33 parts, 10 rivets, 8 bolts (using 68 pieces)

Canopy Cover

Wheel Brake

Progress delayed due to swallow & robin chicks roaming around workshop from 17-Jun-16

swallows 2016
robins 2016

STAGE 12 - 2613 pieces

Part: CYCLINDER BLOCK & FLYWHEEL BRAKE
Started: 12-Jun-16
Finished: 21-Jun-16
Material: Mahogany, Corian®, Holly, Hawthorn, Yew, Brass Threaded Bar
No of Pieces: 7 parts, 44 bolts (using 73 pieces)

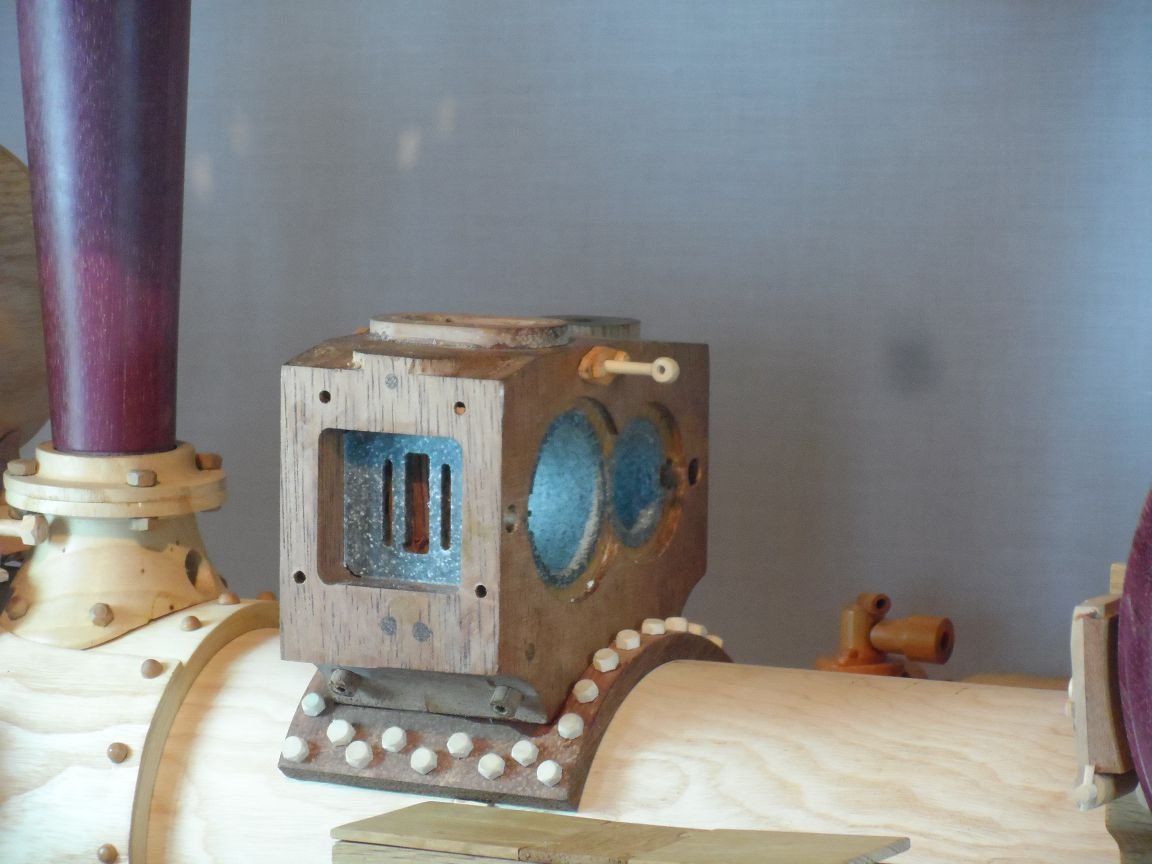

Cylinder Block
Corian® used for Cylinder Liners

Flywheel Brake

STAGE 13 - 2762 pieces

Part: CYCLINDER BLOCK FITTINGS
Started: 04-Jul-16
Finished: 27-Jul-16
Material: Hawthorn, Mahogany, Beech, Corien®, Yew, Brass Threaded Bar, Metal Spring
No of Pieces: 39 parts, 73 bolts (using 149 pieces)

Cylinder Block Fittings
Corien® used for Regulator,
Valves & Valve Seats

STAGE 14 - 2824 pieces

Part: CONNECTING RODS & MOTION LINKS
Started: 27-Jul-16
Finished: 31-Jul-16
Wood: Hawthorn, Holly, Yew
No of Pieces: 25 parts (using 62 pieces)

Reverse Angle

Connecting Rods & Motion Links

STAGE 15 - 2856 pieces

Part: MOTION ECCENTRIC LINKS
Started: 09-Aug-16
Finished: 16-Aug-16
Wood: Box, Hawthorn, Yew
No of Pieces: 18 parts, 16 bolts (using 32 pieces)

Reverse Angle to show details

STAGE 16 - 3124 pieces

Part: GEARS
Started: 16-Aug-16
Finished: 11-Sep-16
Material: Oak, Hawthorn, Holly, Metal Spring
No of Pieces: 26 parts, 37 bolts (using 268 pieces)

Nearside Final Drive Gear

Offside Final Drive Gear

Differential Centre,
1st & 2nd Gears, Reversing Lever

STAGE 17 - 3247 pieces

Part: GEAR GUARDS & LUBRICATOR
Started: 10-Oct-16
Finished: 08-Nov-16
Wood: Lime, Holly, Hawthorn, Yew
No of Pieces: 29 parts, 42 bolts (using 123 pieces)

Reverse Angle

Gear Change

Offside Gear Guard

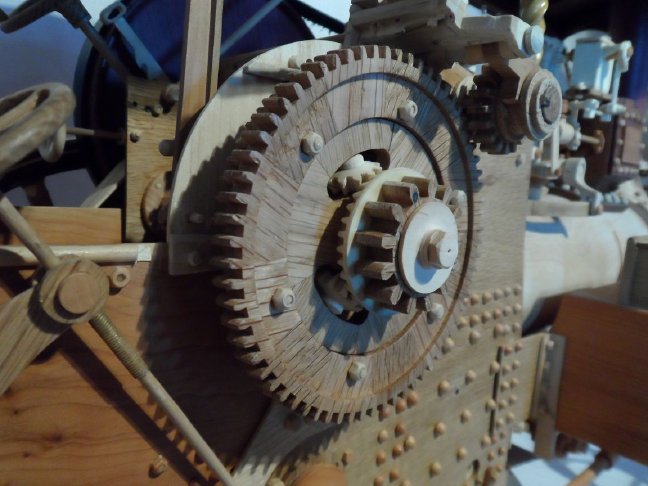

Differential

Lubricator

STAGE 18 - 3518 pieces

Part: PIPEWORK
Started: 08-Nov-16
Finished: 05-Dec-16
Material: Yew, Holly, Walnut, Hawthorn, Smoke Tree, Ash, Mahogany, Mulberry, Plastic Tube
No of Pieces: 45 parts, 30 bolts (using 271 pieces)

Reverse Angle

Motion Guard, Nameplate
& Offside Check Valve

Motion Guard, Nameplate
& Nearside Check Valve

Water Lifter, Blower
& Exhaust Pipework

Whistle

Injector Pipework,
Pressure Gauge & Water Gauge

Injector

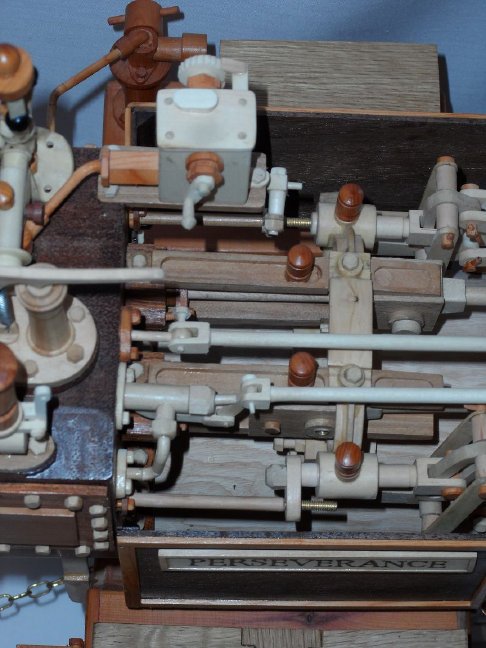

Bypass Detail

Regulator & Bypass

STAGE 19 - 3684 pieces

Part: FINAL STAGE
Started: 05-Dec-16
Finished: 08-Jan-17
Material: Oak, Holly, Hawthorn, Elm, Mulberry, Mahogany, Yew, Ash, African Blackwood, Purpleheart, Canvas, Paper, Brass Chain, Metal Spring
No of Pieces: 63 parts, 17 bolts (using 166 pieces)

Reverse Angle

Cylinder Drain Valves & Pipe

Steering Gear

Steerman's Seat & Shovel

Governor

Switchboard Meters

Chimney Extension
