Fowler 11/13 Tyne Cultivator
Fowler Cultivator At Work
3D CAD Solid Model in 1:8 scale
Drawing Started: 29-Jun-21
Construction Started: 06-Jul-21
Finished: 17-Oct-21
Length - 772mm; Width - 475mm;
Height - 80mm
Exhibited at:
Gloucestershire Vintage & Country Extravaganza - Jul/Aug’25
Welland Steam Rally - Jul’25
Chickerell Steam & Vintage Show - Jul’24 & Jul’25
Castle Combe Steam & Vintage Rally - May’25
Somerset Festival of Transport – Sep’23
Great Dorset Steam Fair - Aug'22
Midlands Model Engineering Exhibition - Oct'22
STAGE 1
STAGE 2
STAGE 3
STAGE 4
STAGE 1 - 664 pieces
Part: MAINFRAME
Started: 06-Jul-21
Finished: 17-Aug-21
Wood: Ash, Turkey Oak, Hawthorn
No of Pieces: 664 pieces
Plan View
STAGE 2 - 1156 pieces
Part: WHEELS
Started: 18-Aug-21
Finished: 09-Sep-21
Wood: Turkey Oak, Mahogany, Holly, Ash, Yew, Paduk
No of Pieces: 492 pieces

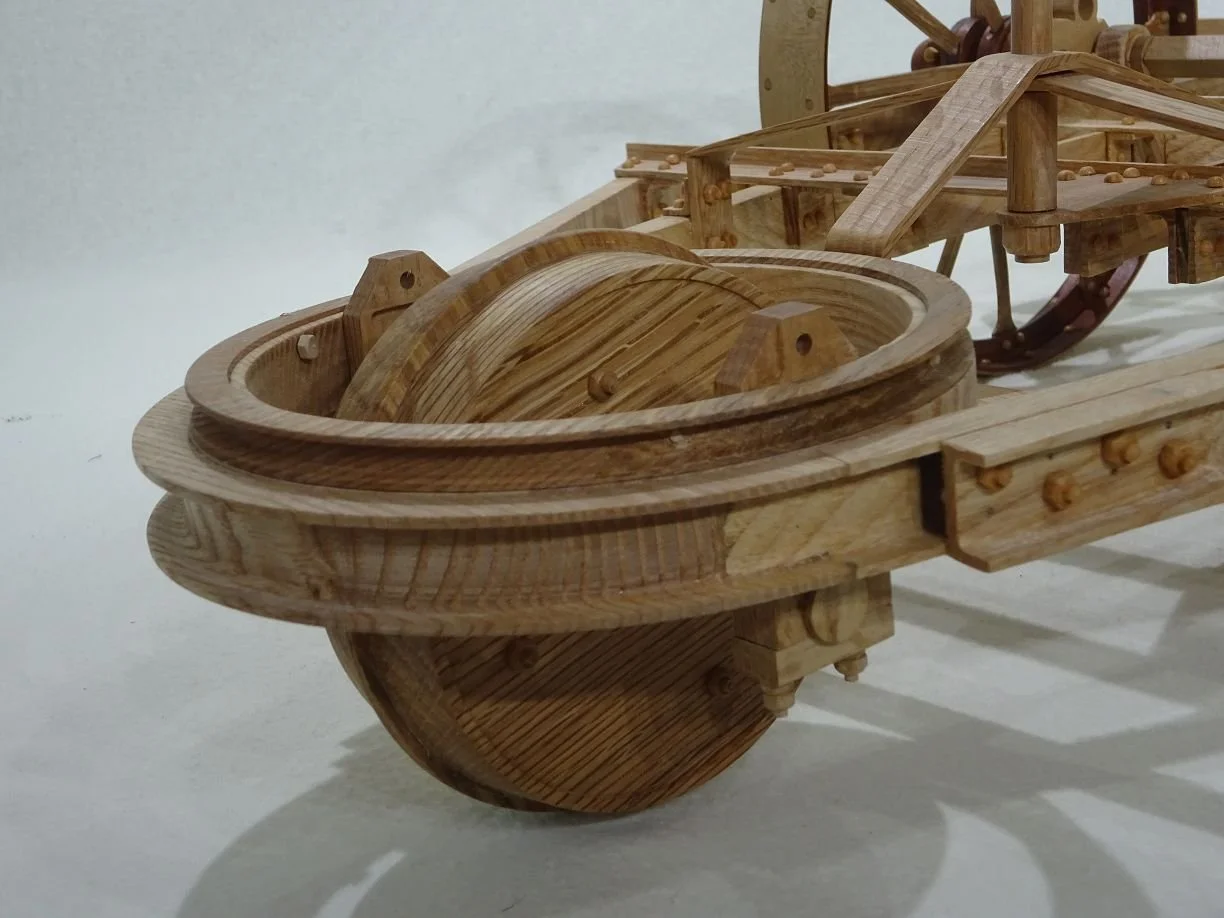

Front Wheel
Rear Wheel Offset
Lifting Gear
STAGE 3 - 1413 pieces
Part: TURNING SYSTEM & STEERING
Started: 02-Oct-21
Finished: 11-Oct-21
Material: Turkey Oak, Ash, Hawthorn, Elm, Holly, Box, Yew, Chains
No of Pieces: 257 pieces
Front View
Side View
STAGE 4 - 1587 pieces
Part: FINAL STAGE - TYNES & CATARACT
Started: 12-Oct-21
Finished: 17-Oct-21
Material: Beech, Holly, Hawthorn, Turkey Oak, Chains, Food Safe Oil, Corian®
No of Pieces: 174 pieces
Side View
Front View
Top View
Y Tow Arm
Cataract (Cushioner)
Cataract & Steering
Tyne & Rope Guide
