Fowler SUPERBA Plough Engine

Fowler Works Photograph

3D CAD Line Drawing in 1:8 scale
Drawing Started: 12-Feb-18

Construction Started: 18-Jul-18 Finished: 10-Feb-20 Length - 980mm; Width - 383mm; Height - 546mm

Only 8 ever made, for Mussolini in the 1920's, none in existence, one photo, not many drawings. Wanted a challenge!

Exhibited (finished) at:

Midlands Model Engineering Exhibition - Oct'22
Great Dorset Steam Fair - Aug'22

Exhibited (incomplete) at:

Great Dorset Steam Fair - Aug'19
Wilton Model Show - Mar'19
South Cerney Vintage & Country Fair - Aug'18-Aug'19
Bristol Model Engineering Show - Aug'18

STAGE 1

STAGE 1

STAGE 2

STAGE 2

STAGE 3

STAGE 3

STAGE 4

STAGE 4

STAGE 5

STAGE 5

STAGE 6

STAGE 6

STAGE 7

STAGE 7

STAGE 8

STAGE 8

STAGE 9

STAGE 9

STAGE 10

STAGE 10

STAGE 11

STAGE 11

STAGE 12

STAGE 12

STAGE 13

STAGE 13

STAGE 14

STAGE 14

STAGE 15

STAGE 15

STAGE 16

STAGE 16

STAGE 17

STAGE 17

STAGE 18

STAGE 18

STAGE 19

STAGE 19

STAGE 1 - 485 pieces

Part: FRONT WHEELS & AXLE
Started: 18-Jul-18
Finished: 22-Jul-18
Wood: Mahogany, Turkey Oak, Yew
No of Pieces: 485 pieces
Comments: FULL SIZE Wheel diameter 5ft 6.25in; FULL SIZE Wheel width 1ft 8in

STAGE 2 - 739 pieces

Part: PERCH, SMOKE BOX & CHIMNEY
Started: 24-Jul-18
Finished: 16-Aug-18
Wood: Elm, Turkey Oak, London Plane, Yew, Mahogany, Holly
No of Pieces: 254 pieces
Comments: Includes Superheater Boxes

STAGE 3 - 3037 pieces

Part: REAR WHEELS
Started: 27-Aug-18
Finished: 10-Oct-18
Wood: Mahogany, Turkey Oak
No of Pieces: 2298 pieces
Comments: FULL SIZE wheel diameter 7ft; FULL SIZE wheel width 2ft 6in

STAGE 4 - 6161 pieces

Part: BOILER & FIREBOX
Started: 11-Oct-18
Finished: 02-Dec-18
Wood: Elm, Turkey Oak, Oak, Yew
No of Pieces: 3124 pieces

Smoke Box Tube Plate
FULL SIZE tubes - 28 x 3in, 8 x 2.75in

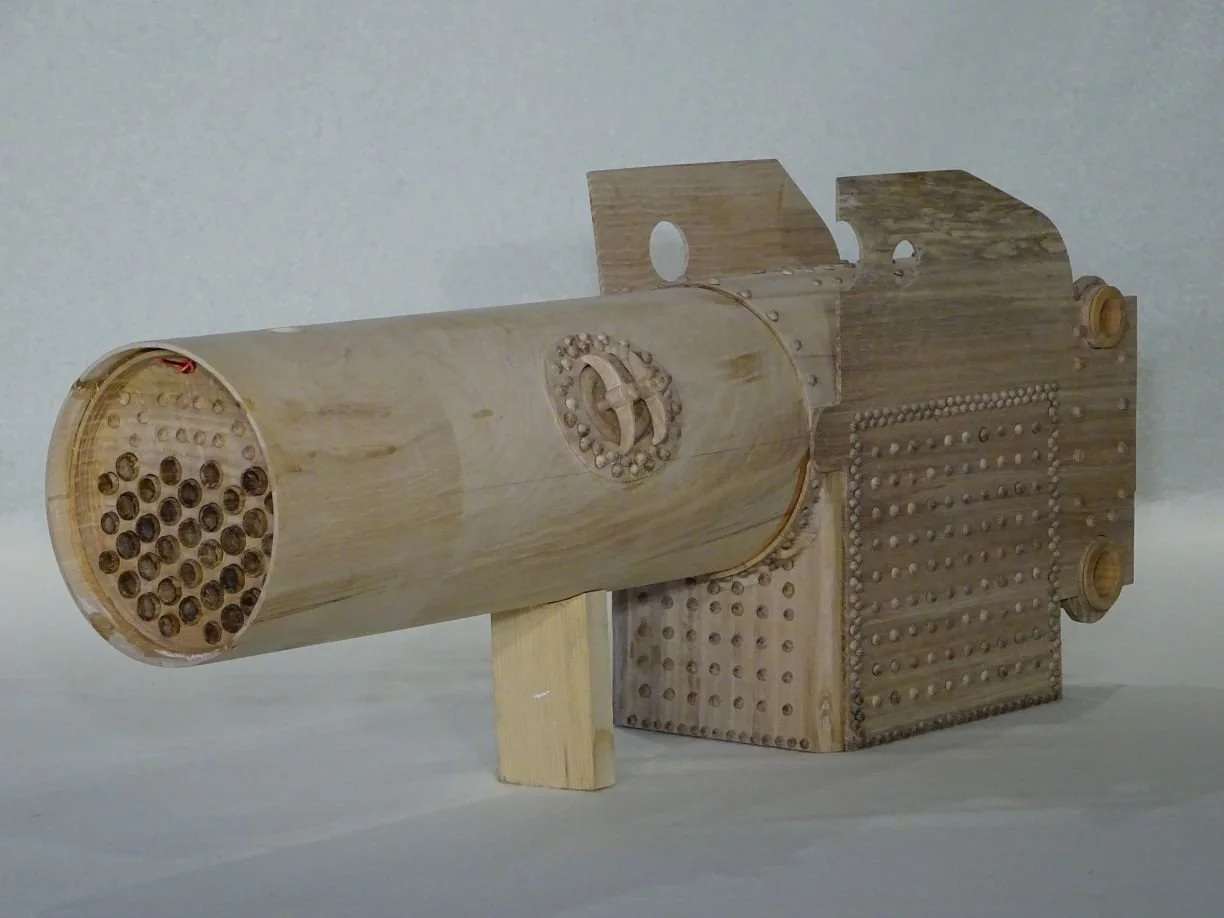

Front Nearside

Rear Nearside

STAGE 5 - 6498 pieces

Part: SUPERHEATER & FIREBOX FITTINGS
Started: 17-Dec-18
Finished: 20-Feb-19
Wood: Turkey Oak, Box, Hawthorn, Holly
No of Pieces: 337 pieces

Superheater Pipes &
Steering Axle Brackets

Firedoor, Fittings & Steam Valve

STAGE 6 - 6957 pieces

Part: HIND TANK
Started: 21-Feb-19
Finished: 19-Mar-19
Wood: Turkey Oak
No of Pieces: 459 pieces

Plough Hitch & Drag Bar

Coal Bunker

STAGE 7 - 7181 pieces

Part: HORN BRACKETS, CRANKSHAFT & FLYWHEEL
Started: 28-Mar-19
Finished: 23-Apr-19
Wood: Turkey Oak, Yew, Jarrah, Oak
No of Pieces: 224 pieces

Crankshaft Assembly

Nearside Horn Bracket & Flywheel

Offside Horn Bracket & Crankshaft

STAGE 8 - 7496 pieces

Part: ASH PAN & UPRIGHT PLOUGH SHAFT
Started: 25-Apr-19
Finished: 05-Jun-19
Wood: Turkey Oak, Yew
No of Pieces: 315 pieces

Assembly

Plough Clutch

Ash Pan

STAGE 9 - 7818 pieces

Part: ROAD GEAR TRAIN
Started: 06-Jun-19
Finished: 25-Jun-19
Wood: Holly, Mahogany, Turkey Oak, Yew
No of Pieces: 322 pieces

Rear View

Nearside Road Gear

Offside Gears

STAGE 10 - 8017 pieces

Part: COILING SYSTEM
Started: 25-Jun-19
Finished: 26-Jul-19
Material: Mahogany, Holly, Turkey Oak, Rope
No of Pieces: 322 pieces

Winding Drum & Coiling Gear
Before Assembly

Rope Guide

STAGE 11 - 8110 pieces

Part: STEERAGE SYSTEM
Started: 27-JuL-19
Finished: 14-Aug-19
Material: Turkey Oak, Holly, Yew, Metal Chain
No of Pieces: 93 pieces

Steering Links

Steering Worm & Worm Wheel

STAGE 12 - 8409 pieces

Part: CYLINDER BLOCK
Started: 29-Aug-19
Finished: 18-Sep-19
Material: Turkey Oak, Mahogany, Corian®, Holly, Yew
No of Pieces: 93 pieces

Front Cylinder Block

Rear Cylinder Block

STAGE 13 - 8672 pieces

Part: MOTION, ECCENTRICS & ROAD CLUTCH
Started: 01-Oct-19
Finished: 09-Nov-19
Wood: Turkey Oak, Holly, Yew, Beech
No of Pieces: 263 pieces

Reverse Angle

Side View (Reverse Angle)

Top View (Reverse Angle)

Top Rear View

STAGE 14 - 8924 pieces

Part: SUPERHEATER, COVERS & PIPES; DRUMCAGE
Started: 11-Nov-19
Finished: 23-Nov-19
Wood: Turkey Oak, Holly, Yew, Elm
No of Pieces: 252 pieces

Water Pocket

Drum Cage & Pawl

Front Toolbox

Superheater Pipes & Covers, Exhaust & Blower Pipes

STAGE 15 - 9131 pieces

Part: CONTROL LEVERS
Started: 15-Dec-19
Finished: 01-Jan-20
Wood: Turkey Oak, Elm, Jarrah, Yew, Holly, Hawthorn
No of Pieces: 207 pieces

Reverse Angle

Starting Cock Lever,
Regulator Lever, Drain Cock Lever
(Reverse Angle Top to Bottom)

Drain Cock Lever, Regulator Lever,
Starting Cock Lever
(Top to Bottom)

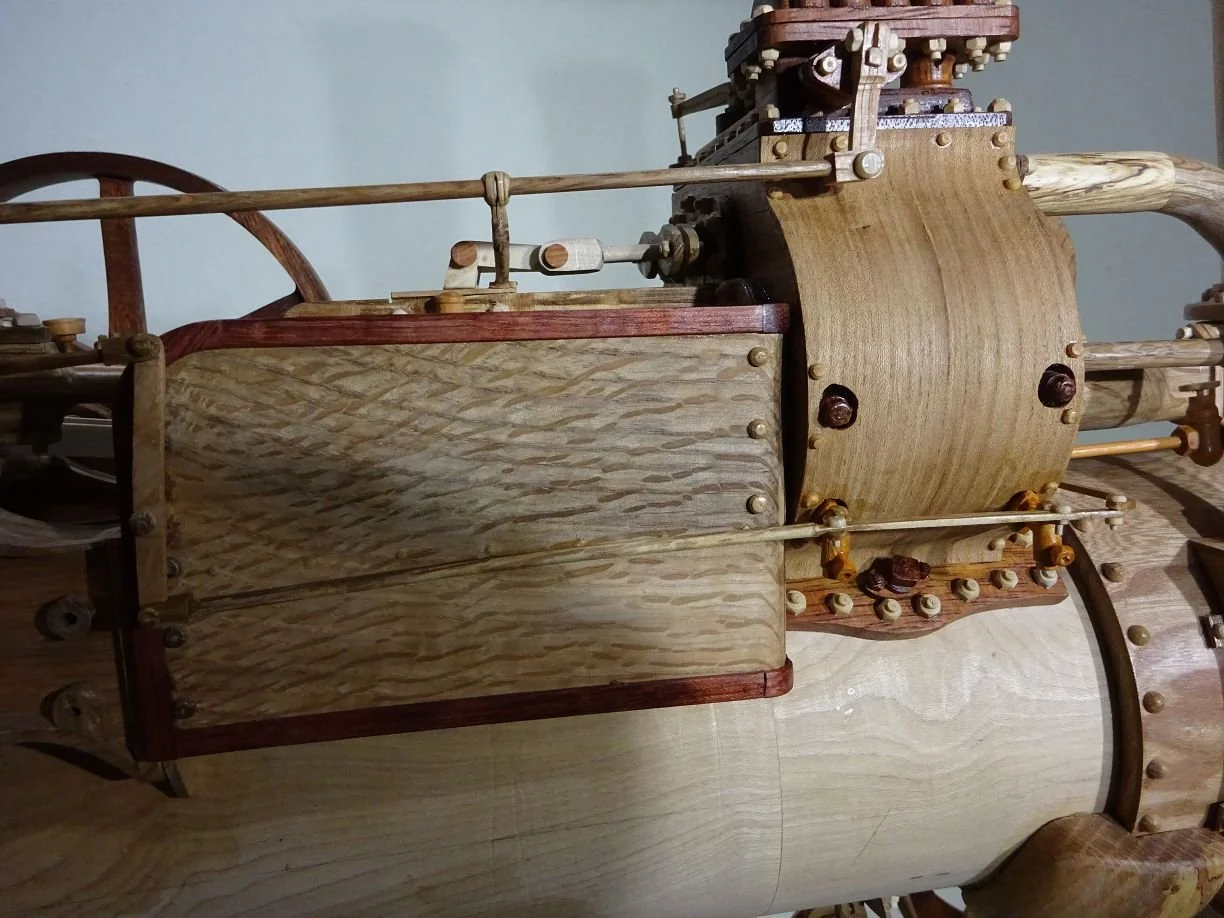

Motion Covers & Cylinder Covers

Top View (Reverse Angle)

STAGE 16 - 9322 pieces

Part: INJECTOR SYSTEM & OILING SYSTEM
Started: 01-Jan-20
Finished: 08-Jan-20
Wood: Turkey Oak, Yew, Holly, Hawthorn, Redbud
No of Pieces: 191 pieces

Reverse Angle

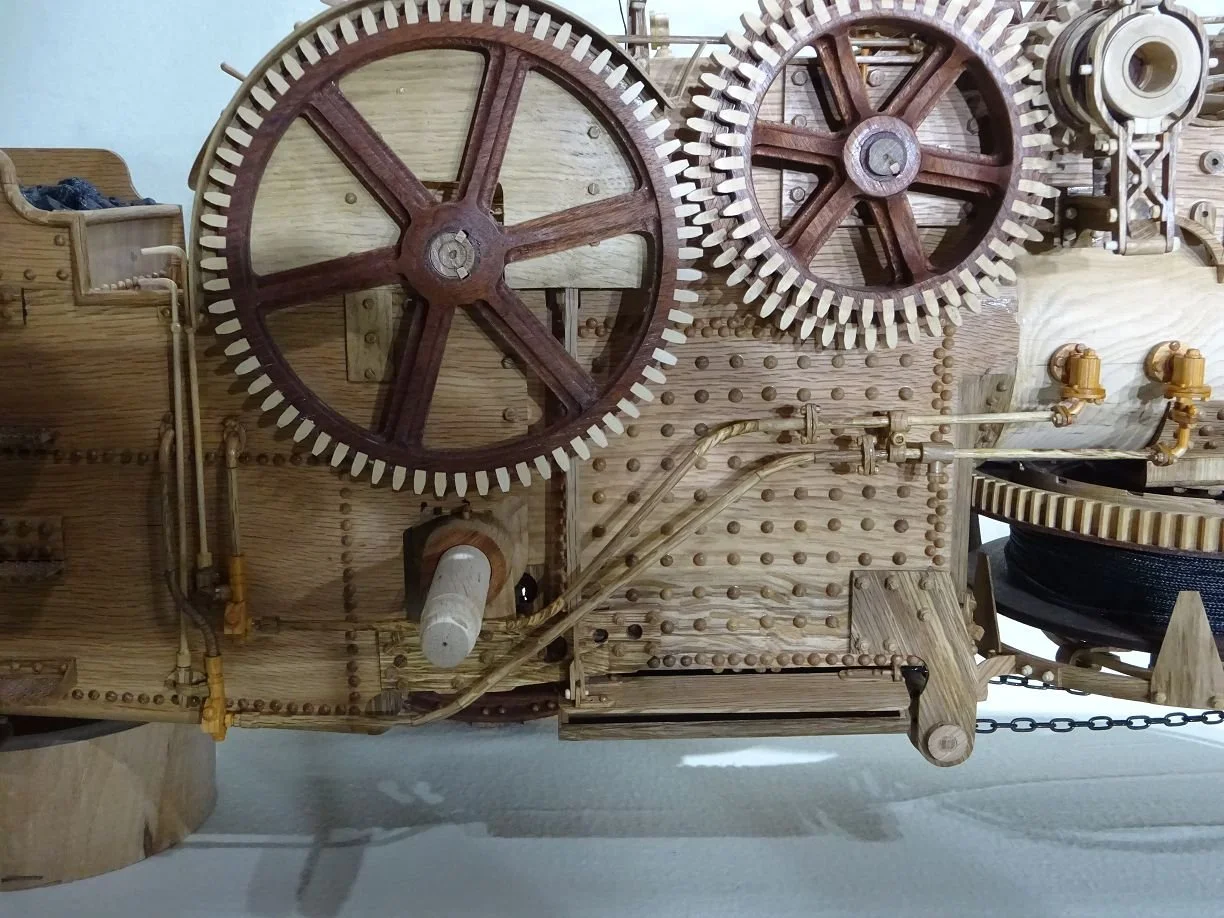

Injector System

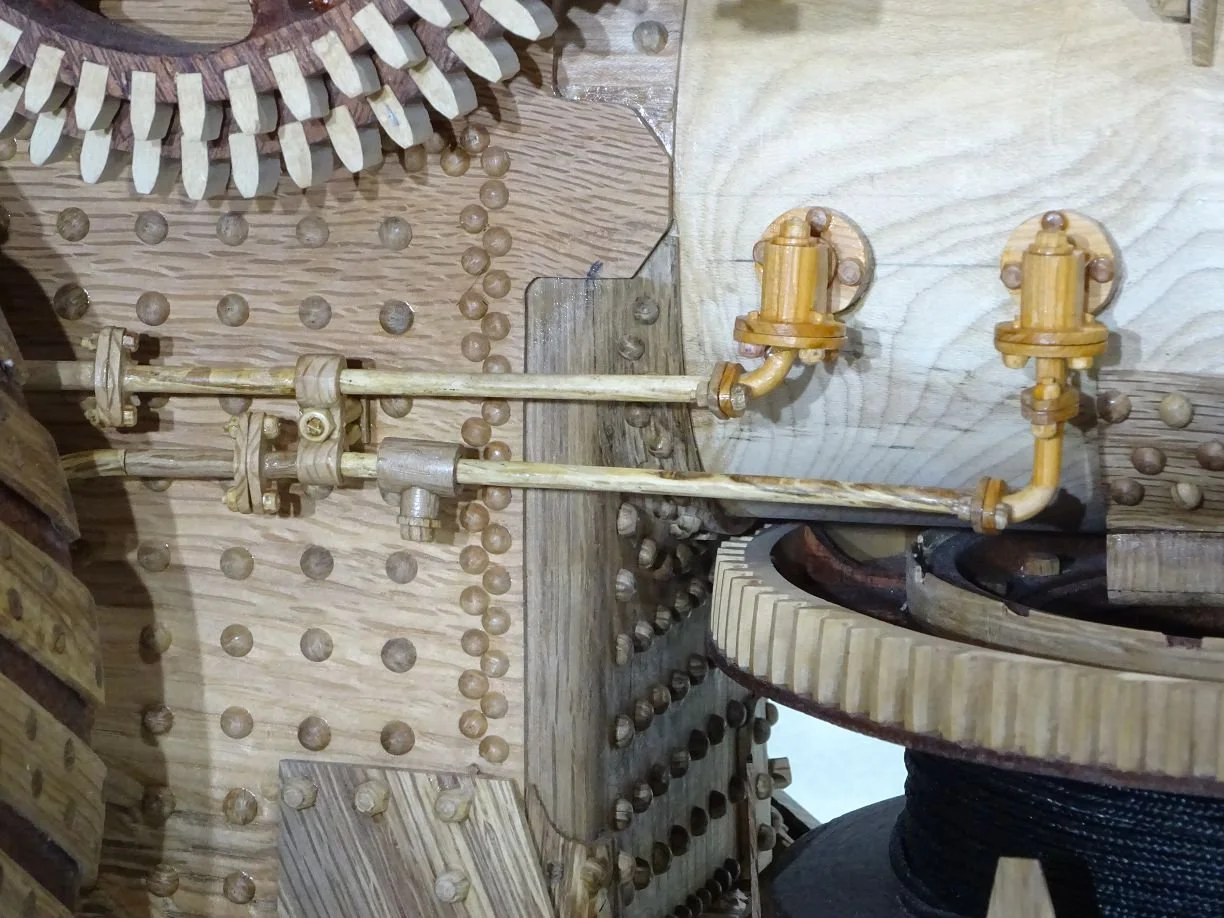

Clack Boxes

Injectors

Pressure Gauge &
Steam Delivery to Injectors

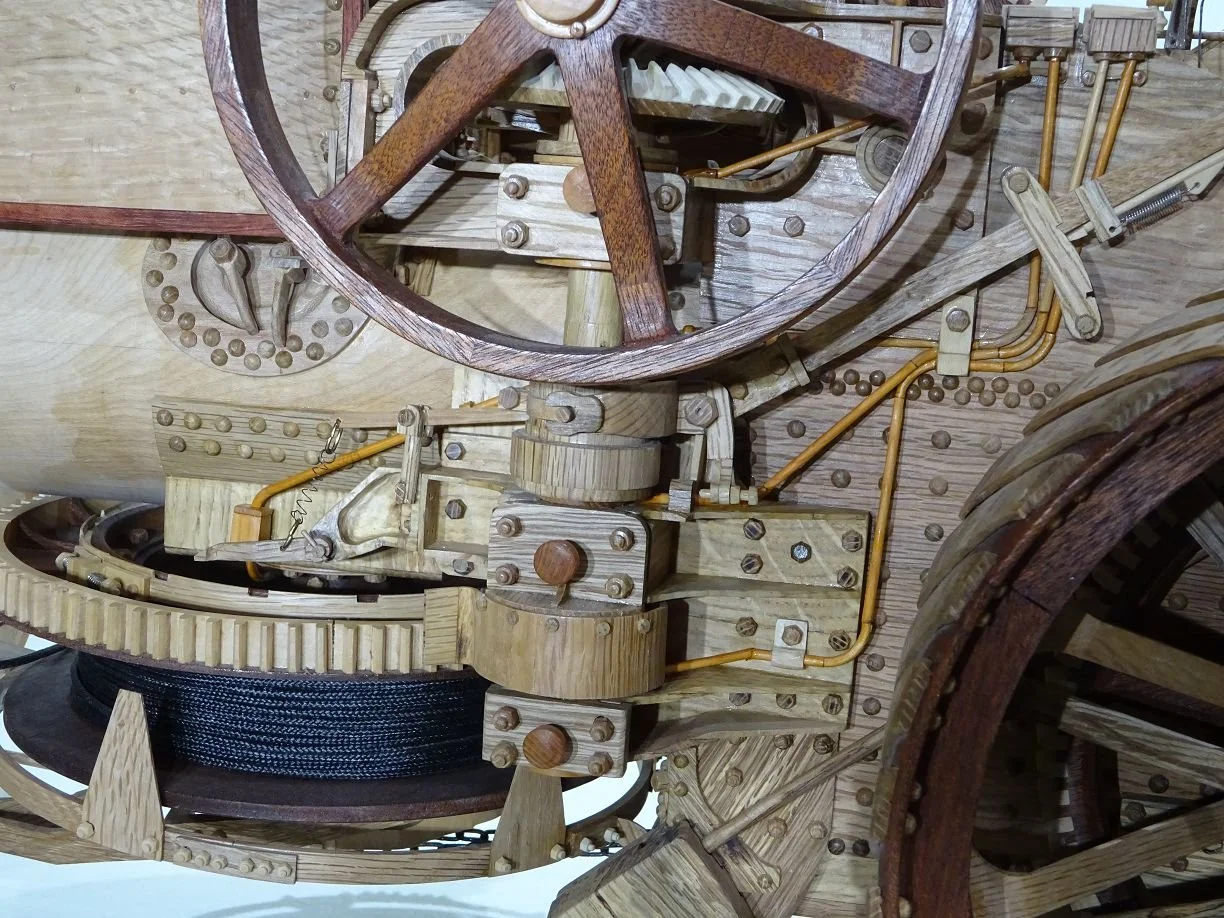

Oiling System

STAGE 17 - 9381 pieces

Part: FOOTBOARDS
Started: 08-Jan-20
Finished: 11-Jan-20
Wood: Mahogany, Turkey Oak
No of Pieces: 59 pieces

Reverse Angle

Top View

Side View

STAGE 18 - 9614 pieces

Part: AWNING
Started: 11-Jan-20
Finished: 16-Jan-20
Material: Mahogany, Holly, Turkey Oak, Canvas
No of Pieces: 233 pieces

Reverse Angle

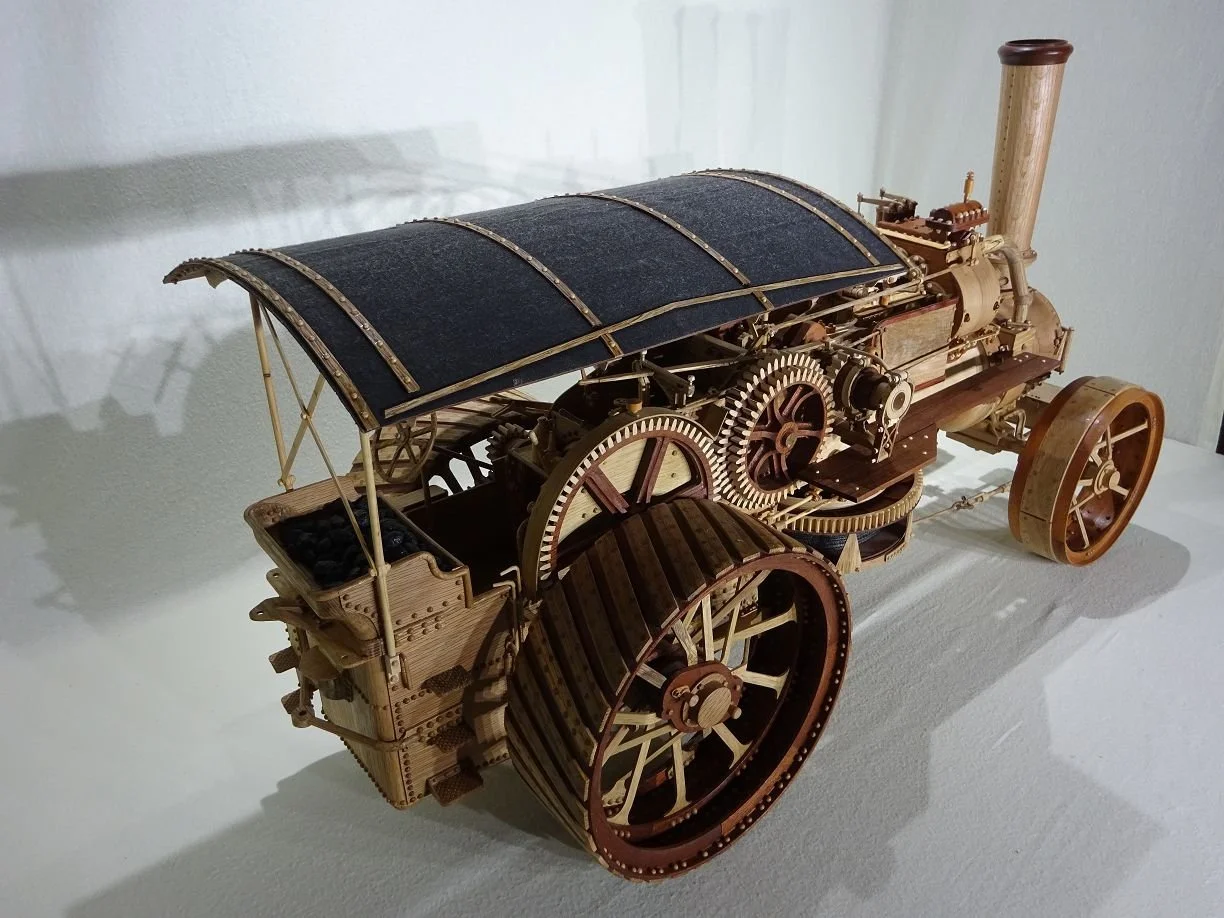

Rear Offside View

STAGE 19 - 9768 pieces

Part: FINALLY COMPLETE
Started: 17-Jan-20
Finished: 10-Feb-20
Material: Spalted Beech, Yew, Turkey Oak, Holly, African Blackwood, Redbud, Mahogany, Metal Spring
No of Pieces: 154 pieces

Reverse Angle

Boiler Lagging & Drain Cock Pipe

Lubricator & Whistle

Top Front View

Front Lamps

Rear Lamp

Tools
